#1001
Tube filter in the bottom water chamber
Click on picture to expand
Tube filter and double percolator filter stack in the top water chamber. The top filter doubles as an ice shelf.
Click on picture to expand

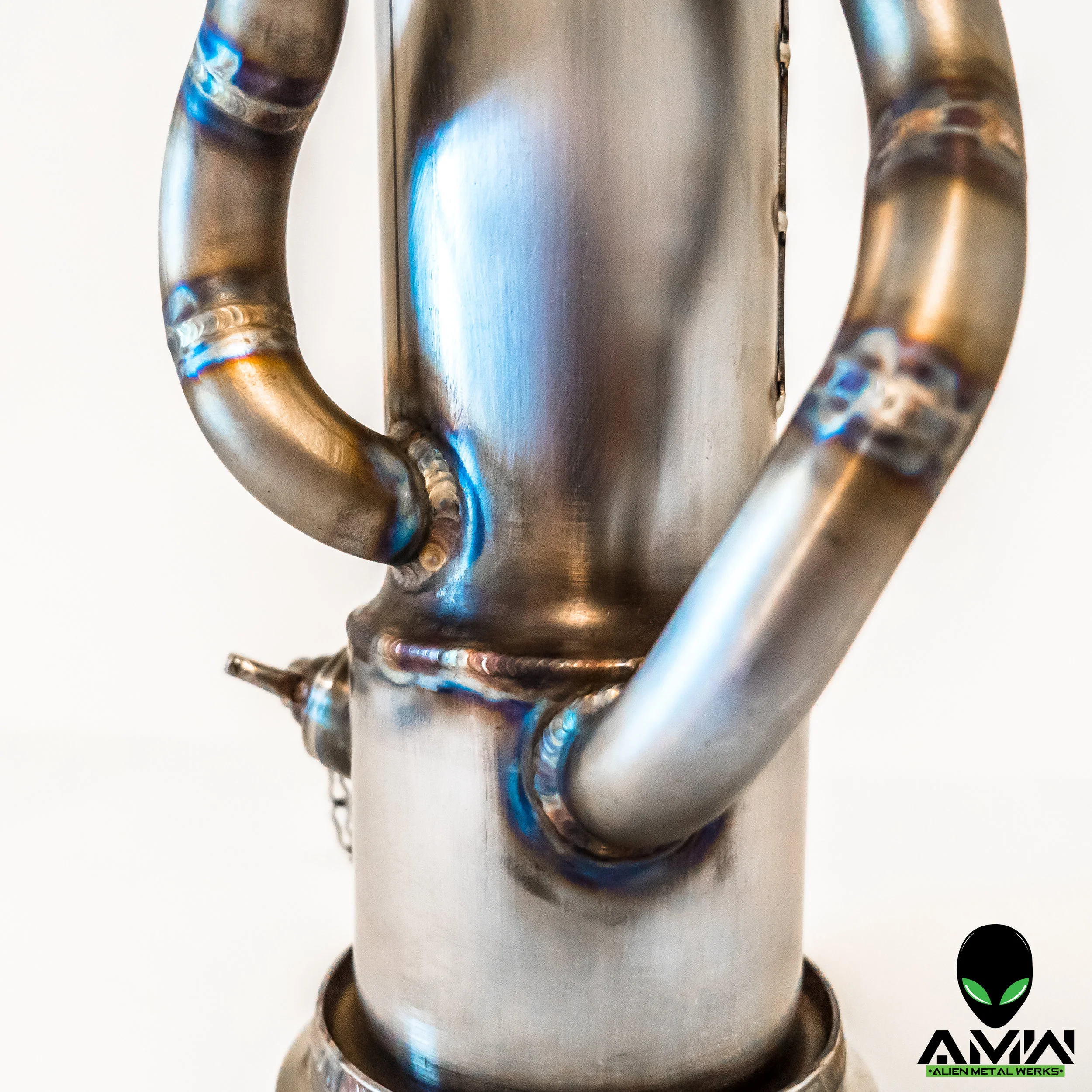

Joining of top and bottom filter chambers and fabrication of the transition tube between them. The design of the tube prevents water in the top chamber from flowing into the bottom.
Click on picture to expand

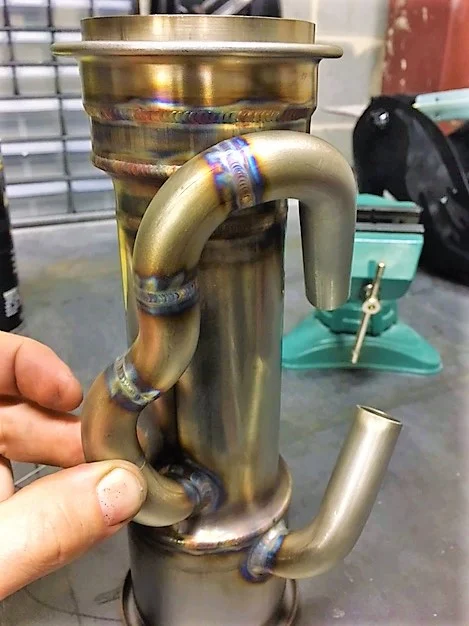

Construction of the inlet tube
Note: During initial construction, this piece was fabricated to use a prototype bowl with a threaded interface. That was abandoned in favor of the standard taper interface that is now used on all AMW pipes. Both versions are pictured here.
Click on picture to expand
Fabrication of the top taper and mouthpiece
Click on picture to expand
